Product Description

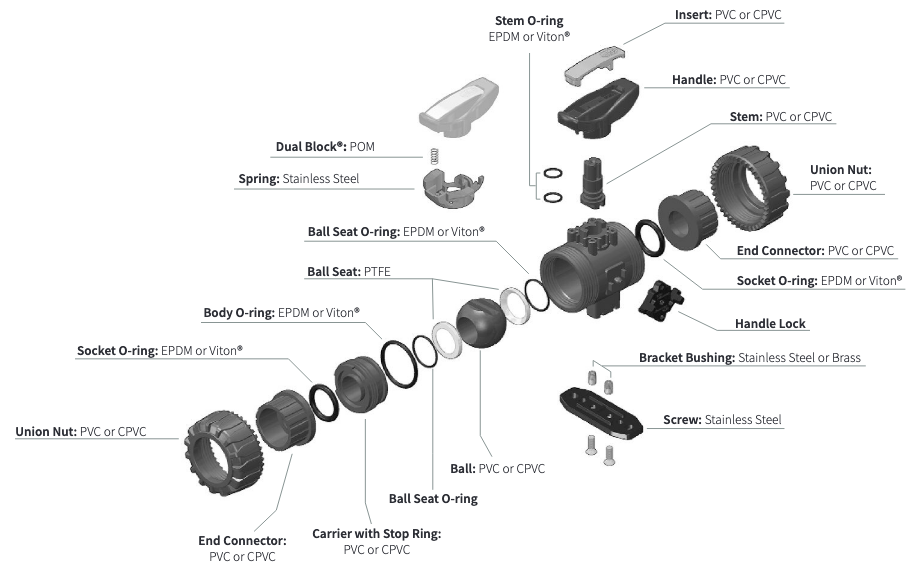

These air-operated PVC ball valves are industrial grade valves. Each valve ships with both NPT female threaded and Glue Socket fittings. The true-union connections are held firm by the patented Dual Block locking mechanism that prevents the collar nuts from loosening due to vibration or accidental contact.
The pneumatically operated (air-driven) actuator is a dual rack-n-pinion, spring return (fail closed) design with a NAUMR standard solenoid mounting pad that makes mounting of a solenoid valve very easy.
Specifications
Valve Type: Ball ValveConnection Type: True-union with both NPT Female and Glue Socket stubs provided
Function: 2-way On/Off
Fail Position: Closed
Body Material: PVC
Seat Material: PTFE
Seal Material: EPDM
Max. Temperature: 140˚F
Max Pressure: 232 PSIG
Documentation:
Datasheet for Valve
User Manual for Valve
Product Videos
Custom Field
Valve Type Ball Valve
Connection Type NPT Female
Function 2-way On/Off
Fail Position Closed
Bady Material 316 Stainless Steel
Seat Material RPTFE
Seal Material PTFE
Temperature Range -30 to 400˚F
Max Pressure (up to 1") 2000 psi
Max Pressure (1 1/2 and 2") 1500 psi
Max Pressure (3") 1000 psi
